Reaction Rules

info

These functions are taken from the SSR unit test: they build the LHS/RHS bigraphs including interfaces and tracking maps.

We use four rule families (meta-rules, template rules) to parameterize the system by the number of robots:

1. Start synchronization: startSync(i, j)

Matches adjacent robots with i > j, installs a shared lock (SLckRef) so they can coordinate.

// Example: robot 1 (left) synchronizes with robot 0 (right).
ReactionRule<PureBigraph> r1 = startSync(1, 0);

Here, i and j represent robot IDs. Think of startSync(1, 0) as:

"If Robot 1 is next to Robot 0, and they are not yet locked, create a lock between them so they can coordinate their next moves."

The lock (SLckRef) is like a handshake:

"We're now linked — only we two will coordinate until this lock is released."

Understanding startSync(1, 0)

The startSync(i, j) reaction rule models the initiation of synchronisation between two neighbouring robots. It is only applicable if the left-hand robot’s ID i is greater than the right-hand robot’s ID j (i > j). This feature is encoded spatially. This constraint enforces the sorting logic. The "larger" robot should move past the "smaller" one. Since the robots moving on a grid, the physical constraints is native and encoded explicitly.

Left-hand Side of the Rule	Right-hand Side of the Rule

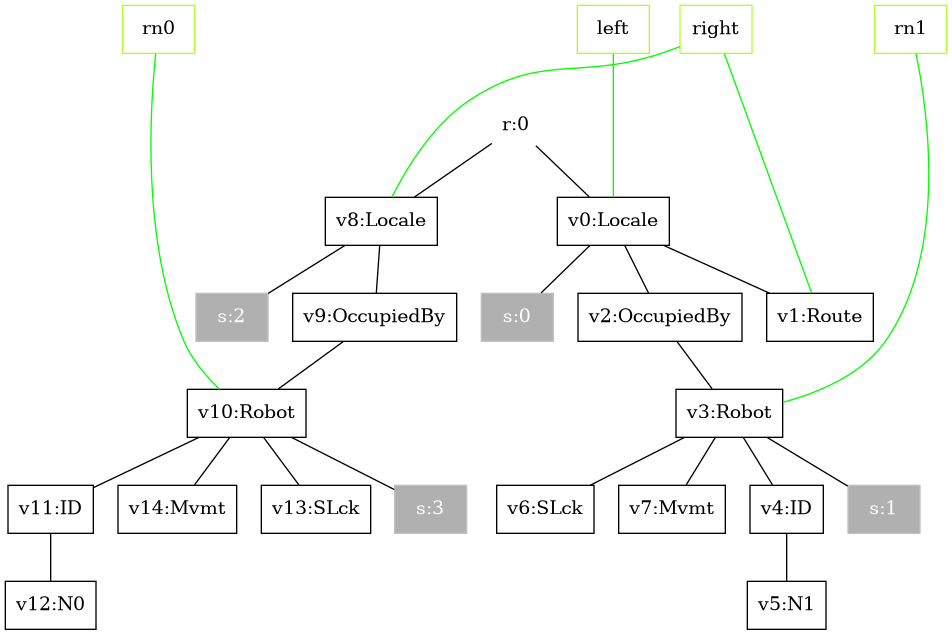

Before synchronisation (LHS)

• Two adjacent locales:
  • Locale_left containing Robot with ID N0
  • Locale_right containing Robot with ID N1
• Each robot is wrapped in an OccupiedBy container and has:
  • ID node holding its identity (N0, N1)
  • Mvmt node (movement control)
  • SLck node (lock) with no references
• There is no shared link between their SLck nodes, i.e., robots are independent.

Preconditions matched:

• Robots are adjacent in the grid environment.
• IDs satisfy i > j → in our example, 1 > 0.
• Neither robot is yet synchronised.

---

After synchronisation (RHS)

• The same two Locale/Robot structures remain in place.
• Both SLck nodes now have a SLckRef child linked to the same edge (private link).
• This edge represents a shared lock, i.e., a communication channel between these two specific robots.

Effect of the rule:

• Positions, IDs, and movement tokens remain unchanged.
• The only modification is adding the shared lock reference so that further rules (initMovePattern(), moveRobotWaypoint(), endSync()) can safely operate on this pair.

2. Initialize movement pattern: initMovePattern()

Adds Tokens under Mvmt and installs waypoint bindings so that the subsequent move rule (moveRobotWaypoint) has something concrete to consume and follow.

ReactionRule<PureBigraph> r2 = initMovePattern();

Think of initMovePattern() as:

"Now that two robots are synchronized (share a lock), give them a movement plan."

That plan consists of two ingredients:

• Token(s) under each robot’s Mvmt: permission/energy to perform a bounded number of moves.
• Waypoints: links that encode where a robot is allowed to move next (e.g., "from left locale to right locale" and vice versa).

Without this rule, moveRobotWaypoint() (next rule) would have nothing to "spend" (no token) and no "direction" (no waypoint).

Understanding initMovePattern()

initMovePattern() is the bridge between "robots are locked together" and "robots can actually start swapping positions". It prepares the local configuration so that movement becomes a controlled, step-by-step process, according to a fixed pattern.

Controlling the drone is performed by attaching drones to waypoints.

Left-hand Side of the Rule	Right-hand Side of the Rule

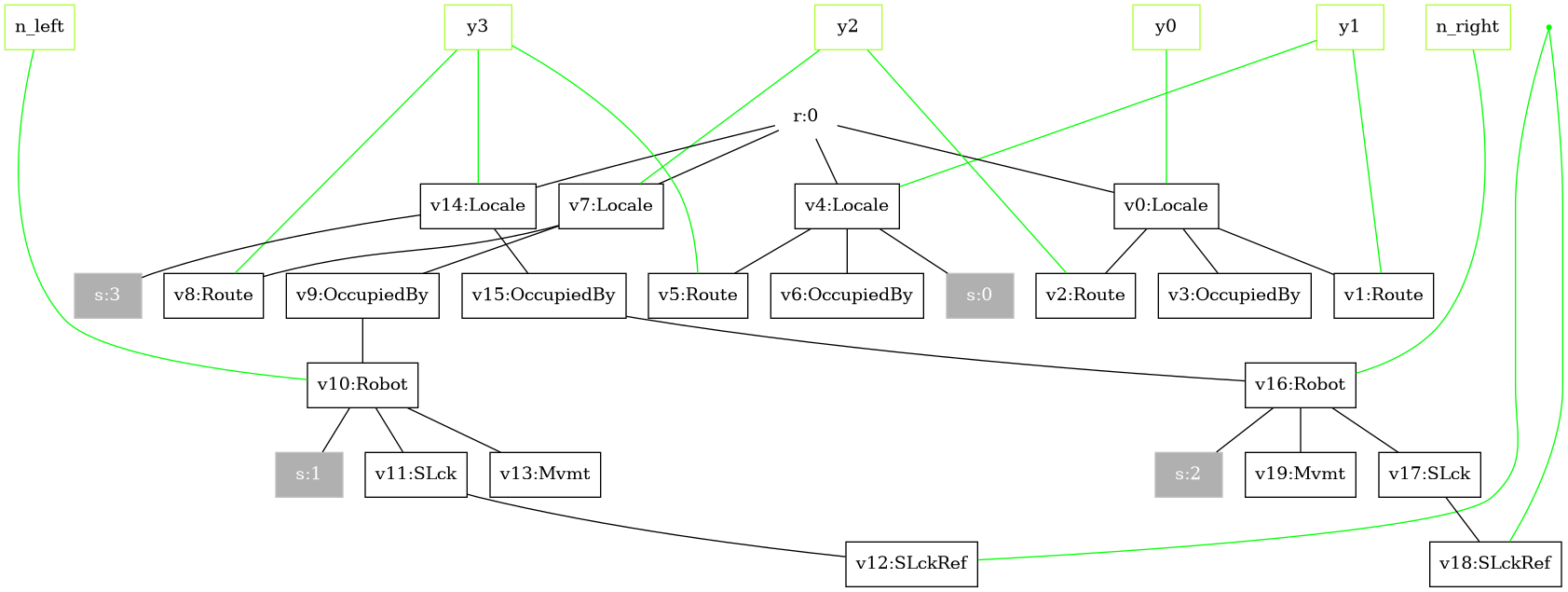

Before movement initialisation (LHS)

• Four neighbouring Locales, two containing a Robot (via OccupiedBy).
• The two robots are already synchronised:
  • each robot has an SLck node
  • each SLck contains an SLckRef
  • both SLckRefs are linked to the same edge (shared lock channel)
• Each robot already has an Mvmt node, but it has no active "movement resources" yet:
  • no Token
  • no waypoint bindings that would tell the robot which Route/target locale to follow

Preconditions matched:

• The robots are adjacent.
• They are already privately paired (via the shared lock).
• The path has not been defined yet.

---

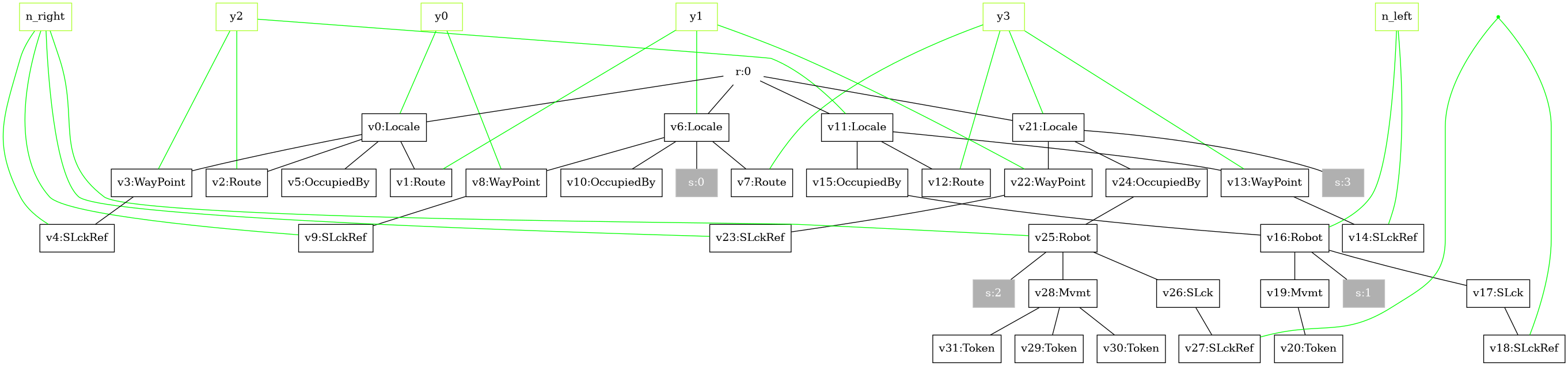

After movement initialisation (RHS)

• Under each robot's Mvmt, one or more Token nodes are created.
• These tokens represent discrete movement steps that can later be consumed by moveRobotWaypoint().
• The rule also installs waypoint links:
  • it binds names (outer) so that a robot's movement control is connected to the appropriate Route structure
  • conceptually, this encodes "next hop" information: source locale to target locale
• Importantly, positions do not change yet:
  • locales, robots, IDs, and the shared lock remain as-is
  • only the movement machinery is added

Effect of the rule:

• Robots remain synchronised and stationary.
• Each robot gains:
  • a finite budget to move (Tokens), and
  • a direction/plan (waypoint bindings)
• The configuration is now ready for repeated application of moveRobotWaypoint() (next rule) until tokens are exhausted (or until the exchange is completed and endSync(i, j) releases the lock).

3. Move along waypoint: moveRobotWaypoint()

Consumes one Token and moves one Robot from a source Locale to a target Locale by following the installed waypoints.

ReactionRule<PureBigraph> r3 = moveRobotWaypoint();

Think of moveRobotWaypoint() as:

"If a robot has a movement token, and its current locale has a waypoint that points to a neighbouring target locale, then spend one token and move the robot to that target locale."

Understanding moveRobotWaypoint()

This rule is the actual step that changes positions in the bi-grid. Everything before it (startSync(), initMovePattern()) only prepares the configuration; this one performs the movement.

Left-hand Side of the Rule	Right-hand Side of the Rule

A useful way to read the diagram is via the outer names (green): src, tgt, ref, n_id.

• src : the locale the robot is currently in
• tgt : the neighbour locale it is allowed to move to
• ref : the "route/waypoint reference channel" (installed by initMovePattern() with corresponding lock nodes SLck and SLckRef)
• n_id : the shared lock/name channel used to keep the synchronised pair consistent while moving

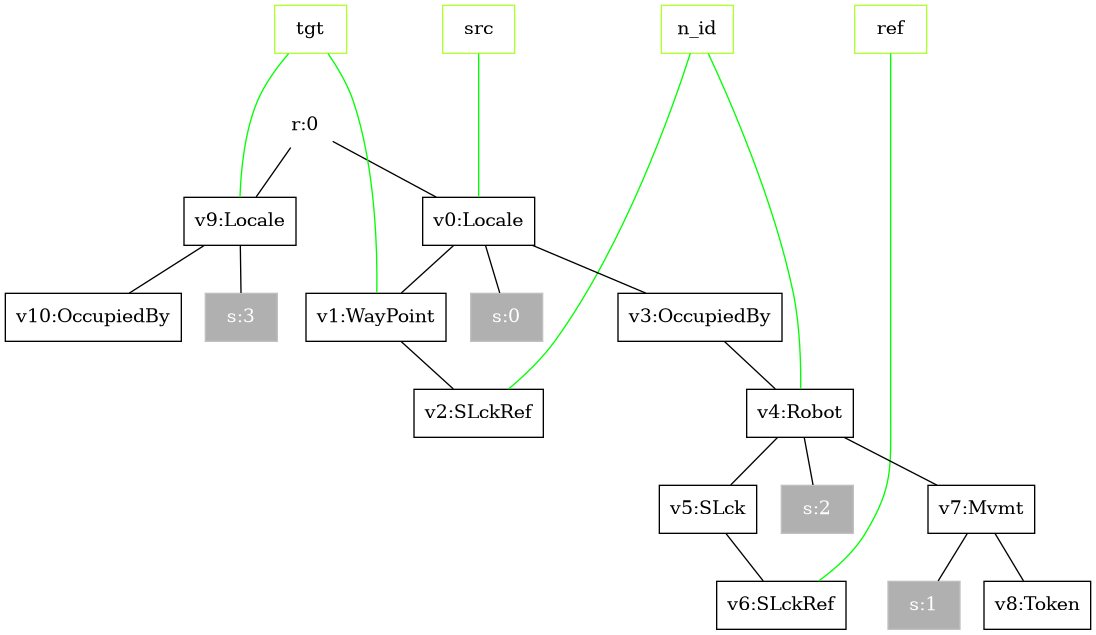

Before movement (LHS)

• There is a source localeLocale that currently contains the robot:
• It has an OccupiedBy which contains a Robot.
• The robot has a resource Mvmt that still contains at least one Token:
• This token represents "one step of permission to move".
• The source locale also contains a WayPoint node.
• This waypoint is linked to a drone.
• The robot remains synchronised (it still has an SLck with an SLckRef), and the lock identity is preserved.

---

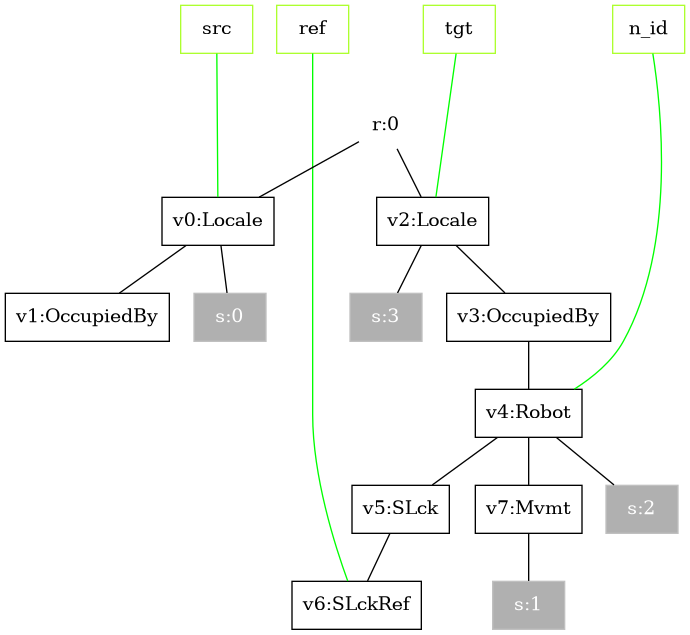

After movement (RHS)

• The robot is re-parented from the source Locale to target Locale
• Exactly one Token is consumed:
• The robot’s identity and synchronisation bookkeeping are preserved: the SLck / SLckRef structure is kept (still "locked" while moving).
• The waypoint reference is maintained consistently so further moves (if more tokens remain) can proceed in the same controlled fashion.

Effect of the rule:

• Movement: re-parent the entire Robot sub-tree from the source Locale to the target Locale designated by the WayPoint binding, while preserving the robot's synchronisation structure (SLck and SLckRef, i.e. the same lock identity).
• Tokens enforce bounded, step-by-step motion (no "teleporting" multiple locales at once).
• Waypoints ensure the robot moves only along allowed neighbour relations (the "direction/route" is encoded as links, not as arithmetic or global state).
• Keeping the lock channel (n_id) intact ensures the two robots can keep coordinating until endSync(i, j) finally releases the lock.

4. End synchronization: endSync(i, j)

Releases locks when the exchange is done.

// Example: release sync between robot 0 and robot 1 (0 < 1 for end)
ReactionRule<PureBigraph> r4 = endSync(0, 1);

Here, i and j are robot IDs. Think of endSync(0, 1) as:

“If Robot 0 and Robot 1 are currently locked together, remove that lock so they can each continue interacting with other robots.”

The SLckRef link is removed, effectively breaking the private communication channel between the two robots.

Understanding endSync(0, 1)

The endSync(i, j) rule models the termination of synchronisation between two neighbouring robots. It only applies if the left-hand robot’s ID i is smaller than the right-hand robot’s ID j (i < j). This complements the startSync rule. After cooperation or an exchange, the link is removed.

Left-hand Side of the Rule	Right-hand Side of the Rule

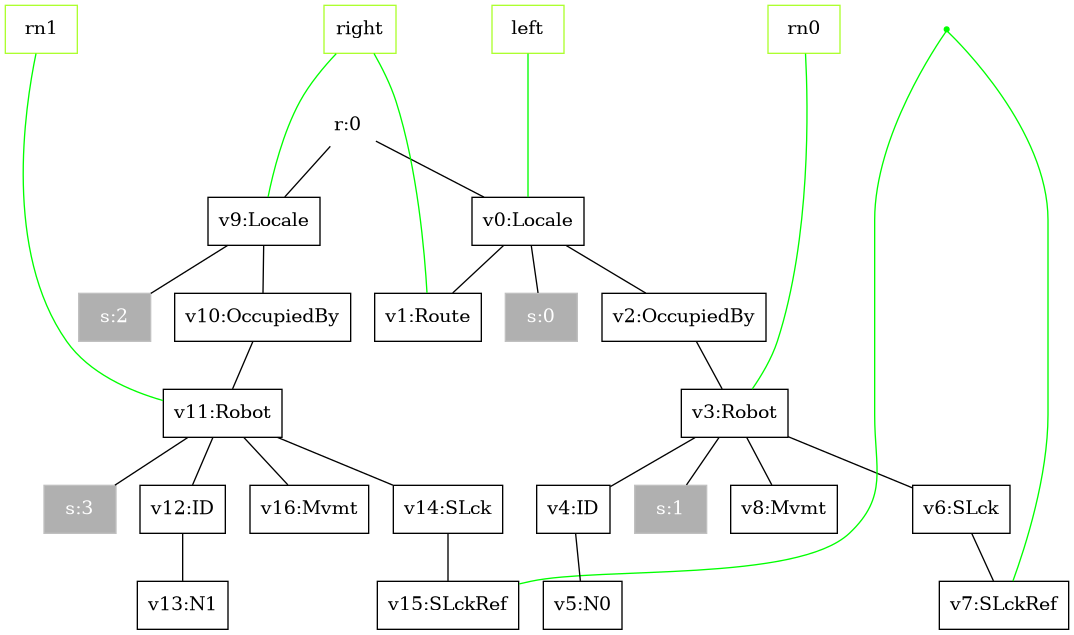

Before releasing (LHS)

• Two adjacent locales:
  • Locale_left contains Robot with ID N0
  • Locale_right contains Robot with ID N1
• Each robot has:
  • An ID node for its identity
  • A Mvmt node
  • An SLck node containing a SLckRef child
• Both SLckRef nodes are linked to the same edge, indicating they are currently locked together.

Preconditions matched:

• Robots are adjacent.
• IDs satisfy i < j → here 0 < 1.
• They are already synchronised.

---

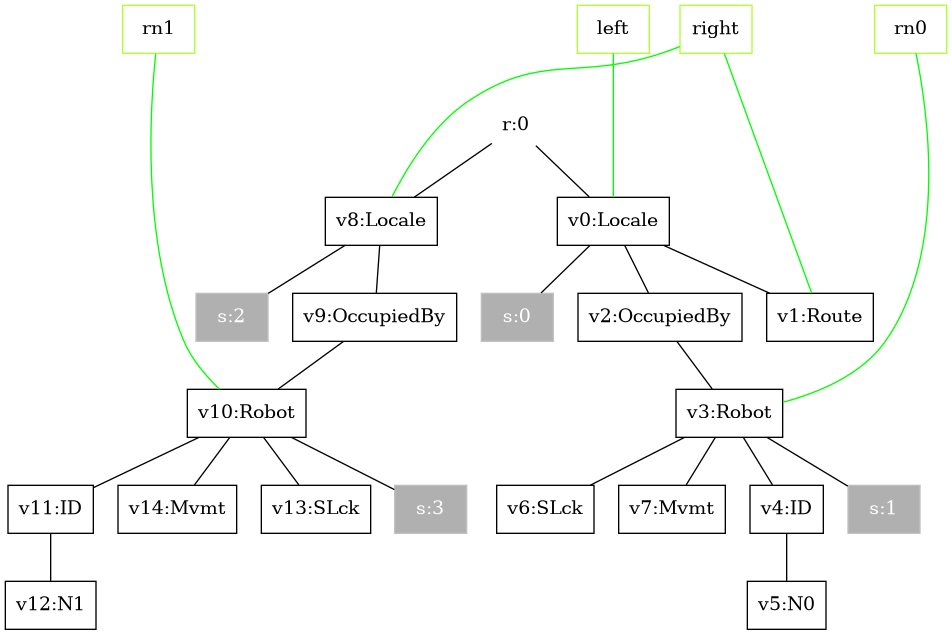

After releasing (RHS)

• The same Locale and Robot structures remain.
• The SLckRef children have been removed from both SLck nodes.
• The robots are now "free". No shared lock link remains.

Effect of the rule:

• The robots retain their positions, IDs, and other attributes.
• The only change is the removal of the shared lock, making them available for future synchronisations with other robots.
